Place of Origin : China
Brand Name : chinacoal
Certification : ISO9001,CE
Packaging Details : standard carton packing
Delivery Time : 7 days for ready goods
Payment Terms : TT,LC,Paypal,Western Union
Supply Ability : 3000 sets/month
MOQ : 1set
Product introduction
High conversion efficiencies resulting in superior power output performance
Outstanding power ourput even in low light or high temperature conditions
Optimized design for ease of soldering and lamination
Long-term stability,reliability and performance
Low breakage rate
Color uniformity
Main parameter
Efficiency cell (%) | Maximum power Pmpp(w) | Peak voltage Vmp(V) | Peak current Imp (A) | Open-circuit Voltage Voc(V) | Short-circuit current Isc(A) |
17.0-17.2 | 4.14 | 0.523 | 7.957 | 0.628 | 8.454 |
16.8-17.0 | 4.09 | 0.520 | 7.883 | 0.627 | 8.362 |
16.6-16.8 | 4.04 | 0.518 | 7.832 | 0.626 | 8.315 |
16.4-16.6 | 3.99 | 0.516 | 7.779 | 0.623 | 8.265 |
16.2-16.4 | 3.94 | 0.514 | 7.772 | 0.620 | 8.210 |
16.0-16.2 | 3.89 | 0.511 | 7.668 | 0.618 | 8.158 |
15.8-16.0 | 3.84 | 0.509 | 7.610 | 0.615 | 8.102 |
![]() |

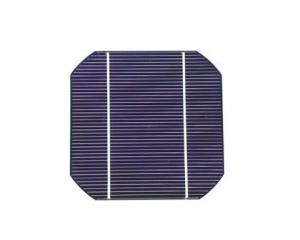

shandong coal 2013 Hot sale 156*156mm 2BB/3BB Polycrystalline solar cells/multi-soalr cells Images |
